Introduction to Radar Systems Part 1: Understanding Radio Detection and Ranging

Radar has become the invisible backbone of the modern world, a “sixth sense” for today’s technology in national defense, meteorology, agriculture, environmental monitoring, and even healthcare.

- By Tony Hanna

In Part 1 of this article series, Tony presents a brief history of radar, the diverse methods of classifying radar systems, and an overview of the major components of all radar systems. Radar is one of those invisible technologies that quietly power our modern world. Since its inception, it has transformed defense and navigation, and found its way into countless aspects of daily life—from air traffic control and weather forecasting to self-driving cars, and even deep-space exploration. Just as importantly, radar laid the groundwork for many of today’s communication technologies. Understanding radar is a fundamental step toward grasping the principles that underpin today’s connected world.

This article series is written to be accessible to readers with minimal prerequisites. It is designed to grow more technical as it unfolds, moving from broad historical and conceptual foundations toward more detailed explanations of radar operation, before finishing with constructing a laboratory radar system.

RADAR IN A NUTSHELL

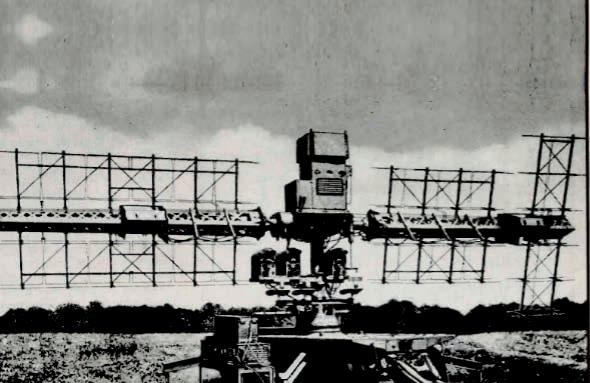

So, what is a radar at its core? It’s a technology that uses radio waves to determine the presence of objects and collect useful information, such as their location, direction, and speed. It saw its first wide use in military applications such as the SCR-268 radar system (Figure 1), which was developed during World War II to provide accurate aiming information for antiaircraft artillery.

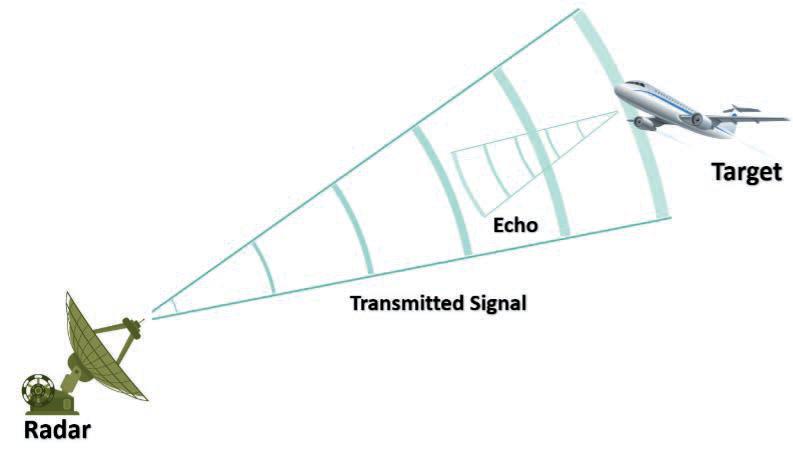

The basic principle of radar, as shown in Figure 2, is simple yet powerful. A high-frequency electromagnetic radio signal is transmitted and will scatter off anything that it encounters. A small amount of the energy, the echo, is reflected back to be received and processed. Using electronics and signal processing, radars can separate the targeted signals from noise.
