HEAVY-DUTY SECURITY GATE

By now, your gate posts are solidly set in concrete, and your rectangular frame is cut, tacked, and checked for alignment.

-

It's time to give your gate its real muscle - welding it securely, adding diagonal braces to prevent sagging, and installing the infill panels that stop intruders from reaching through.This stage requires patience and precision, but once complete, you'll have a structure built to outlast most store-bought security gates.

Step-by-step guide

Step 1

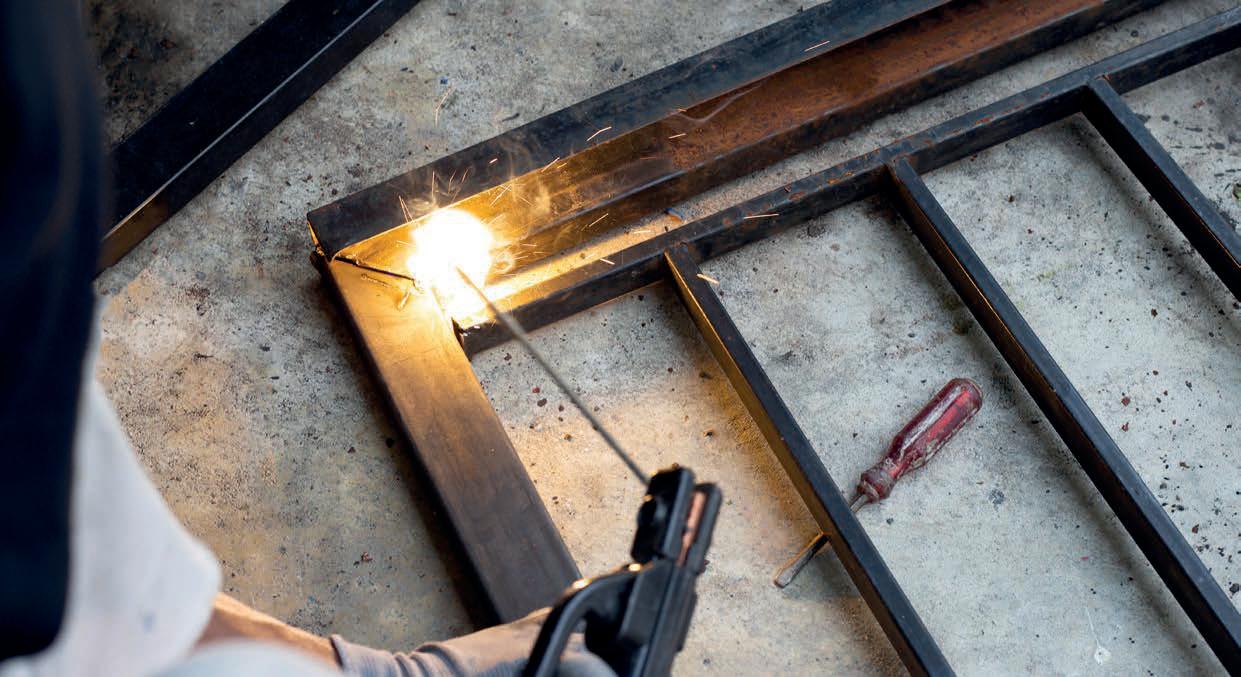

Welding the frame properly

A strong weld is the backbone of a reliable gate. Poorly welded joints can lead to warping, twisting, or structural weakness - especially under South Africa's temperature extremes or the strain of frequent use.

a. Prepare the joints: Before welding, clean each joint with an angle grinder to remove mill scale, rust, or oil. This ensures better penetration and stronger welds.

b. Tack first, weld second: Tack-weld all four corners again to keep the frame square. Measure diagonally one last time - both diagonals must match within a few millimetres.

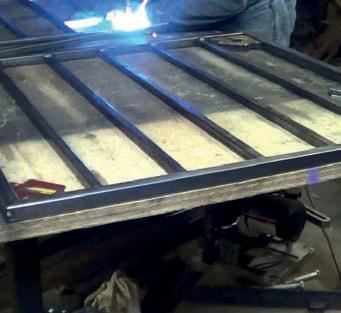

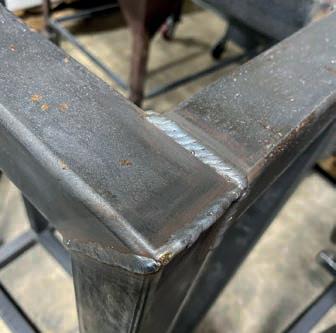

c. Full weld: Once you're sure the frame is true, run full, continuous weld beads along every joint. Alternate between opposite sides to balance the heat and prevent warping.

d. Cool naturally: Avoid quenching hot metal in water - it can cause brittleness. Let the frame cool slowly in open air.

TIP: If you have access to a welding table, clamp the frame flat during welding to keep everything aligned. On a concrete surface, use spacers beneath the frame to lift it slightly so the weld beads don't stick to the ground.

Step 2

Adding diagonal bracing
