Bus front step replacement

It’s probably one of the most common rust spots...

- Mark Walker

The front step area on a Split or Bay Bus always comes in for a lot of abuse. Whether it’s through mud and grit being thrown up from the tyres, dirty wet feet landing on them all the time, or water ingress that literally eats the step from the inside, it’s a very common area to need repair.

The Bus in the pictures came in for a very different kind of abuse: someone driving into it while parked, but the outcome is the same – complete replacement of the lower inner and outer step. A few years ago this job would have been much more involved, but thanks to some nice fitting panels now available, it’s so much easier. Thanks to Simon at Specialist Motorcaravan Services (07791 948880) for allowing us to photograph this work being carried out.

HOW TO Split bus front step replacement

01 Prepare

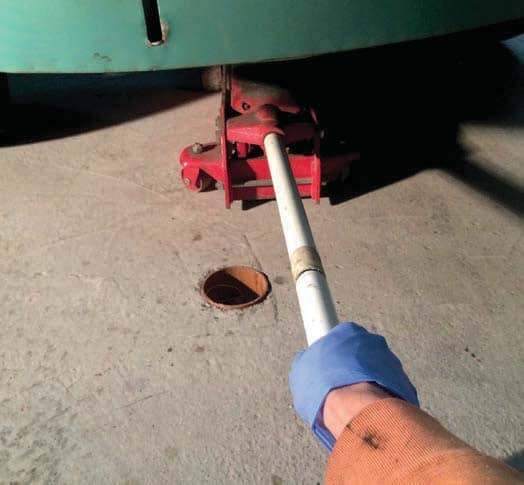

As you will be accessing the step from the inside and out, it is necessary to jack up the Bus and remove the front wheel. We prefer to jack the bus near the centre of the beam, but avoiding the centre/idler pin. Make sure you use axle stands on a level surface, either at the outer ends of the beam tubes or on the front chassis.

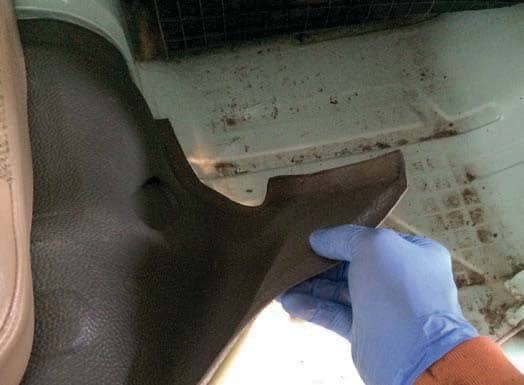

02 Remove trim, protect glass
