Delay-Off APPLIANCE TIMER

This delay-off timer is a cost-effective, reliable, and easy-to-assemble device for automating time-based switching operations.

- SURESH CHANDRA DWIVEDI

It improves energy efficiency and adds convenience in both home and office settings by ensuring appliances remain on only as long as required. Delay-off timers are commonly used in appliances that need to remain active for a defined duration even after the control switch or trigger has been turned off. They contribute to convenience, safety, and power savings across residential, commercial, and automotive applications.

Typical uses include exhaust fans in bathrooms and kitchens, where the timer keeps the fan running briefly to eliminate residual moisture or odours. In staircases or corridors, it ensures lights remain on just long enough for safe passage. Other applications include automatic water pumps, car interior lighting, and buzzers or alarms.

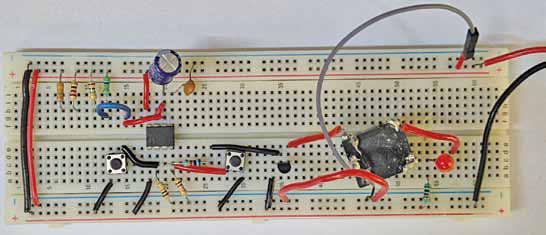

This timer circuit is built around a TLC555 IC configured in mon-ostable mode. Once the start switch is pressed, the circuit powers the connected appliance for a preset interval before automatically switching it off. Dedicated push switches allow selection of delay options—5, 10, 15, 20, or 30 minutes—based on the switch used.

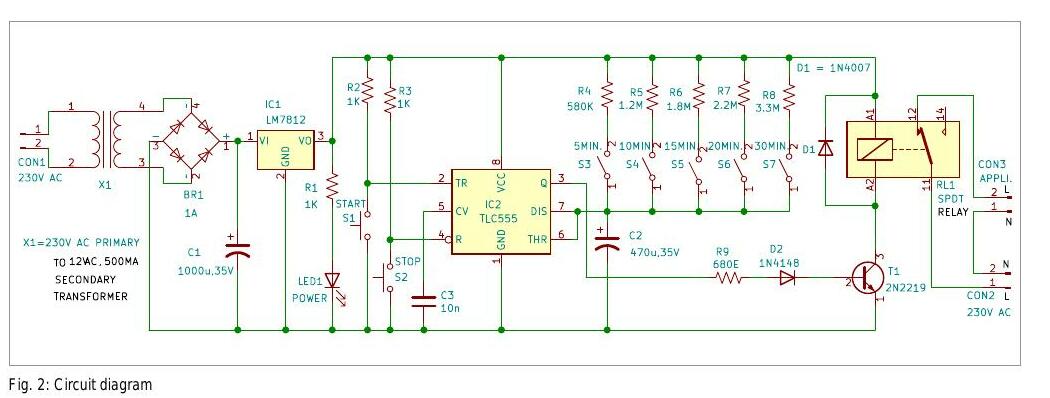

Circuit and working
