The fifth dimension

How 5-Axis machining is redefining precision and agility in manufacturing.

- By Sujatha Vishnuraj

The global manufacturing landscape is in the midst of a quiet transformation. For decades we have known that the workhorse of the industry has been the 3-axis CNC machine, a reliable tool for producing parts by moving a cutting tool along three linear axes: X, Y, and Z. However, as industries such as aerospace, automotive, and medical devices demand ever more intricate components and tighter tolerances, the limitations of this traditional approach have become starkly apparent. The answer to this growing complexity is the 5-axis revolution, a technological leap that is not merely an incremental upgrade but a fundamental shift in how parts are conceived, programmed and produced. This revolution is redefining precision manufacturing, enabling complex geometries, faster production and superior surface finishes and it presents a strategic imperative for Indian manufacturers seeking true global competitiveness.

The mechanics beyond three dimensions

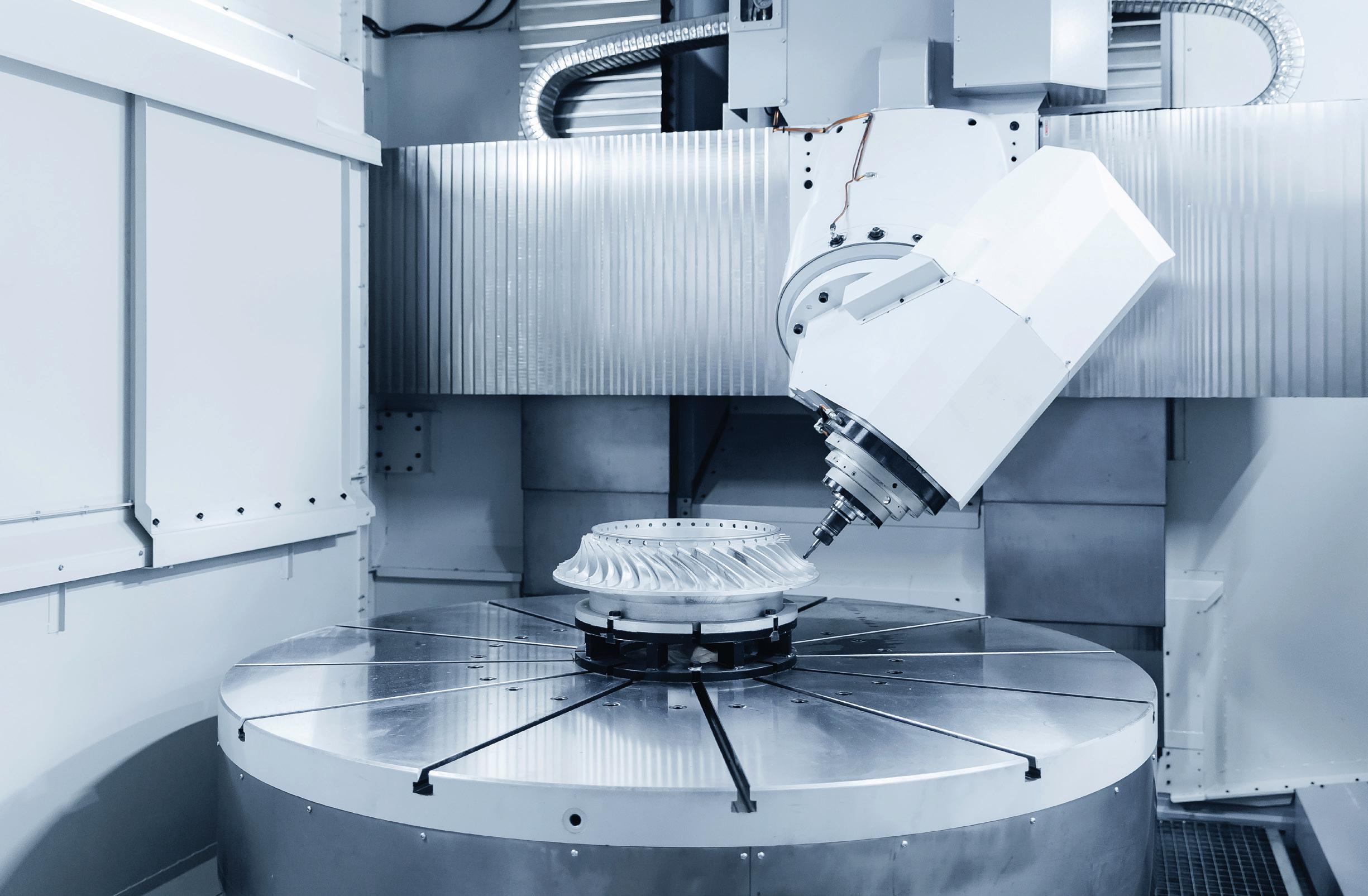

The core difference between 3-axis and 5-axis machining lies in the machine's ability to manipulate the cutting tool and the workpiece. A 5-axis machine adds two rotational axes—typically designated A and C, or B and C—to the standard three linear axes. These two additional axes allow the cutting tool to approach the workpiece from virtually any angle, eliminating the need for multiple setups and dramatically improving efficiency.

The benefits of this capability are transformative. Firstly, the ability to machine a part in a single setup—often referred to as “done-in-one”—is a game-changer. This considerably reduces the potential for human error, improves part-to-part accuracy by eliminating repositioning errors and significantly cuts down on overall cycle time. Secondly, the superior surface finish achieved by 5-axis machines is unmatched.
