EXTRA-TECH: HOLLEY CONVERSION
4LOW Offroad Magazine|August/September 2020
IF you’ve spent any time off-road with a carbureted vehicle, it probably didn’t take long to find the limits of a bowl of fuel sitting on top of the intake. Angles are not friendly to this dated, but effective, technology. You can solve this problem using an electronic fuel injection system that replaces your carburetor with a more efficient throttle body injection. The Sniper EFI, provided by our friends at Holley Performance Products, is a complete solution containing everything needed to complete the job.
Daniel Maffett

The vehicle going under the knife today is my 1980 Jeep CJ7. The drivetrain is an AMC 258ci with a Weber 32/36 Carb, T176, Dana 300 JB conversion 4:1 kit. This powers the factory Dana 30 Spartan Locked front axle, and AMC 20 ARB Locked rear axle. Both have 4.56 gearing and alloy axle shafts from Ten Factory. The Jeep sits on about 4 inches of lift, between body and suspension, and 35 inch Milestar Tires.

Let’s get started. First up, out with the old; although this Weber carb has treated me well for many years and is far superior to the BBD Carter that the Jeep would have come with from the factory, I have reached its limits on the rocks. Removal is very straight forward. First, disconnect all fuel and vacuum lines. Follow this by disconnecting the linkage and filter assembly. Remove the four mounting bolts and the bolts holding the adapter to the manifold. What you’re leftwith is a bare BBD carb mounting flange in need of a quick cleanup. At this time, remove all metal and rubber lines from the old mechanical fuel pump. These will not be reused.

Just like that, the fun is ready to begin! The Holley Sniper kit provides four new mounting studs; these were installed with a dab of blue Loctite. The gasket was placed over the studs and the Sniper unit placed on top. In hindsight, trimming a bit of the length from the mounting studs would have made installation easier, as the studs’ installed height made finding the correct socket combo difficult.

Continue reading your story on the app

Continue reading your story in the magazine

MORE STORIES FROM 4LOW OFFROAD MAGAZINEView All

TRAIL REPORT: Gladiator Trail

There are many trails within the Chokecherry Canyon area of Farmington, New Mexico.

2 mins read
4LOW Offroad Magazine
February/March 2021

CHASING SQUIRRELS

“ There is a hole here,” I said, gazing through the lime green tubing as the front passenger tire inched closer to the hole. “Uh-huh,” he replied.

6 mins read
4LOW Offroad Magazine
February/March 2021

PUT IT OUT!

ALWAYS CARRY A FIRE EXTINGUISHER

5 mins read
4LOW Offroad Magazine
February/March 2021

STAMPEDE AMONG THE PANDEMIC

STAMPEDE AMONG THE PANDEMIC

2 mins read
4LOW Offroad Magazine
February/March 2021

STEERING THAT IS FORGIVING

A challenge, as your o -road daringness increases, is how to keep your steering safe.

5 mins read
4LOW Offroad Magazine
February/March 2021

GLAMIS BLACK BAG PROJECT

Keeping Glamis clean for all to enjoy

1 min read
4LOW Offroad Magazine
February/March 2021

LIGHTEN THE RIDE OFF YOUR RIG

Aftermarket suspension systems typically use one of three end types on their suspension links.

4 mins read
4LOW Offroad Magazine
February/March 2021

FIRST GENERATION BRONCO VS. 2021 FORD BRONCO SPECS

A comparison of the data. The first-generation Ford Bronco, released in 1966 and after vs. the 2021 Ford Bronco.

1 min read
4LOW Offroad Magazine
February/March 2021

DIXIE 4 WHEEL DRIVE - NAMED TORA RETAILER OF THE YEAR AT SEMA

Some four-wheel-drive shops feel like institutions. They’ve been around in everyone’s memories forever, so you know they’ve existed for a long time. Dixie Four Wheel Drive has long been one of those establishments in St. George, Utah.

1 min read
4LOW Offroad Magazine
February/March 2021

ANOTHER SHAFT OPTION

Two key components that take a beating on an off-road vehicle are the front and rear driveshafts.

1 min read
4LOW Offroad Magazine
February/March 2021
RELATED STORIES

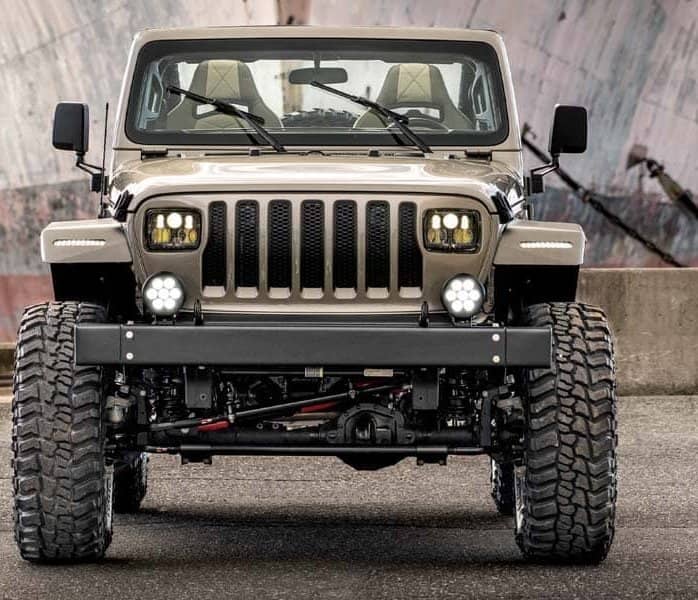

Quadratec's YJ
